𝐁𝐈𝐆 𝐔𝐏𝐃𝐀𝐓𝐄 TODAY Orion Schematics ​

=====================================
𝙉𝙚𝙬 𝙂𝙪𝙞𝙙𝙚𝙡𝙞𝙣𝙚 Has been added :

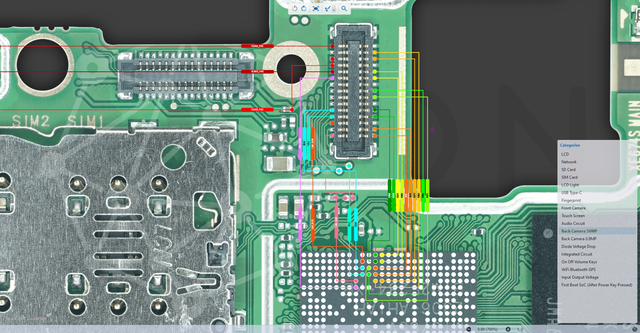

Tecno Spark 20C (BG7)

𝑵𝒆𝒘 𝑩𝒊𝒕𝒎𝒂𝒑 Has been added :

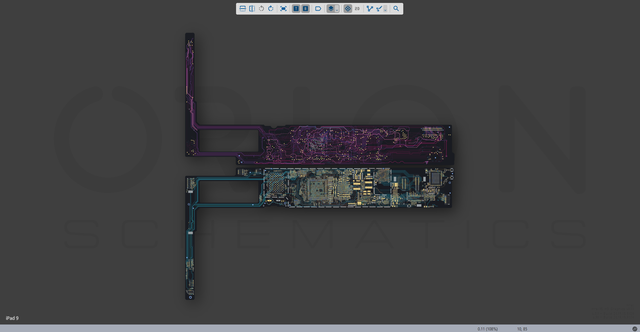

iPad 9 820-02558-A

𝑵𝒆𝒘 𝑺𝒄𝒉𝒆𝒎𝒂𝒕𝒊𝒄𝒔 Has been added :

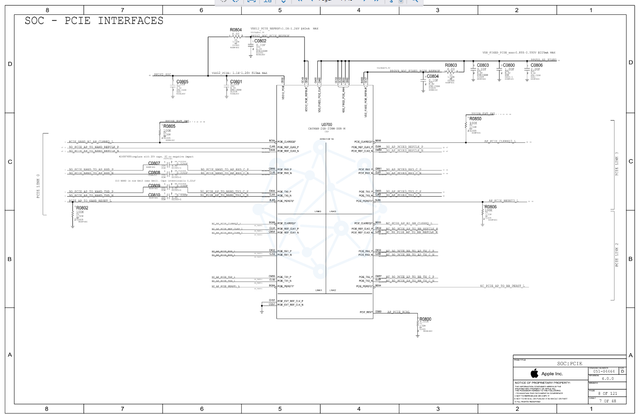

Apple iPad 7 820-01685 820-01686 (A2197) (A2198, A2200)

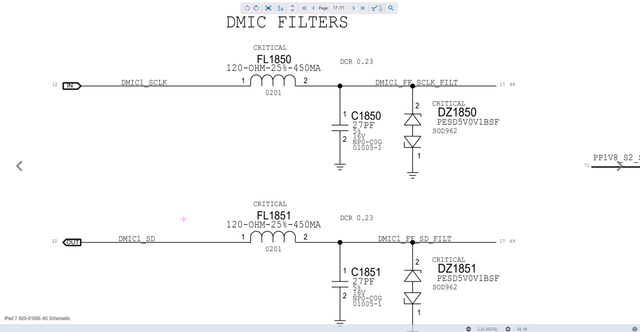

- iPad 7 820-01685 4G Schematics
- iPad 7 820-01685 WiFi Schematics

ORION SCHEMATICS FEATURES CONTENT !
Simply Guideline
Impressive Multilayer Bitmap PCB
Pinout IC

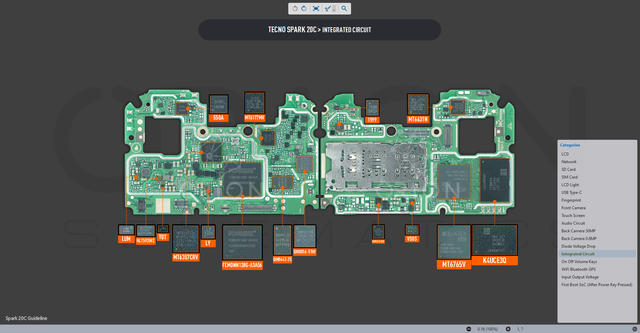

Integrated Circuit
Dioda Voltage Drop
First Boot SOC
Connecting
Multi Snap
Fast category switching
Swap Board Iphone
Laptop & Notebook Features
Revolutionary Bitmap & Boardview
Cross Reference Part (Easy To Find Compatible Parts)
All in One Category in a file (Low Bandwidth)
Bitmap 2D & 3D (Complete PCB Layout)
Extra Ordinary PDF Viewer Schematics
Bind & Unbind PC (Instantly Realtime)
Multiple View with Snap
RFFE & I2C Probe Point in iPhone (DMM+ Ads-ons)
And so many more..

TRY FREE Orion Schematics NOW!!
